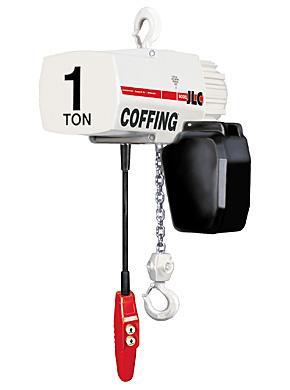

Coffing JLC 1 Ton Electric Chain Hoist

Coffing JLC 1 Ton Electric Chain Hoist
Item# JLC20
Regular Price: $4,476.00
Sale Price (*Std. Options): $2,858.42
Suspension*:  Control*:  Lift Speed*:  Voltage:  Phase:  Lift* (Feet):  Flange Width (inches) or Beam Size (e.g. W10x49):

Product Details

  • Two speed and Variable speed only available with 3 phase power (230V or 460V)!
  • JLC Hoist Model
  • Duty Cycle = H3
  • Headroom = Hoist Only 18-1/8 inches, Trolley Options 17-5/16 inches
  • Reeving = 1 (Single)
  • 2 Button Pendant (Up/Down) = Included for Hook, Lug, Push Trolley and Gear Trolley
  • 4 Button Pendant (Up/Down) = Included for Motorized Trolley
  • Standard push-button drop is 4 ft. less than lift
  • Chain Container = Included Standard
  • Paint = White Enamel
  • Hoist equipped with 15 ft. Power Cord except for motorized trolley
  • 1-year warranty

    Additional features and benefits include:
  • Mechanical overload protection device standard
  • Multiple Disc Motor Brake Standard
  • Limit switches adjustable to regulate upper and lower load travel. Brass nuts standard for improved repeatability and chain positioning
  • NEMA 3R Push button station ergonomic design fits operator's hand for thumb or two-handed operation. 24 Volt Control for operator safety. 115 Volt Control available upon request.
  • Hook, Lug, Push trolley, and Geared Trolley Hoist Equipped with 15 ft. power cord
  • Motorized Trolley Hoists – power cord not included (Call if needed)
  • Standard trolley speeds are 35 and 70 FPM. Optional speeds available (Call if needed)
  • Standard Dual Speed Tread Wheels (I-Beam or WF-Beam) are 4” tread diameter
  • Patented track for trolleys available (Call if needed)
  • I-Beam and WF-Beam applications standard up 8” JLCET and 9” JLCMT flange width (if greater than limit, call us)
  • Variable Speed Standard Push Button station is 2-Step (Call if 3-step station needed)
  • Zinc plated options available (Call if needed)
  • Extra Lift and Long Lift Limit Switches Available (Call if needed)


    • *Adding some options will increase the price of the hoist. These options are indicated by the notation at the end of an option line. i.e. $(+5.25) will add $5.25 to the Sale Price.

    **If Variable Frequency Drive and 115 V Control chosen, there will be an additional charge, we will contact you upon receipt of your order with an updated price.
